PSM2GPH24IVL

PSM2GPH24IVL

$28.95
$28.95

Robertson PSP2GPH24IVL Electronic Program Start UV Ballast (for Preheat Lamps), 425mA, 100-277V, for 1 or 2 10W- 21W SO lamps or for 1 22W-38W SO lamp

For quantities less than listed, please contact BallastShop.com to purchase this item.

Description

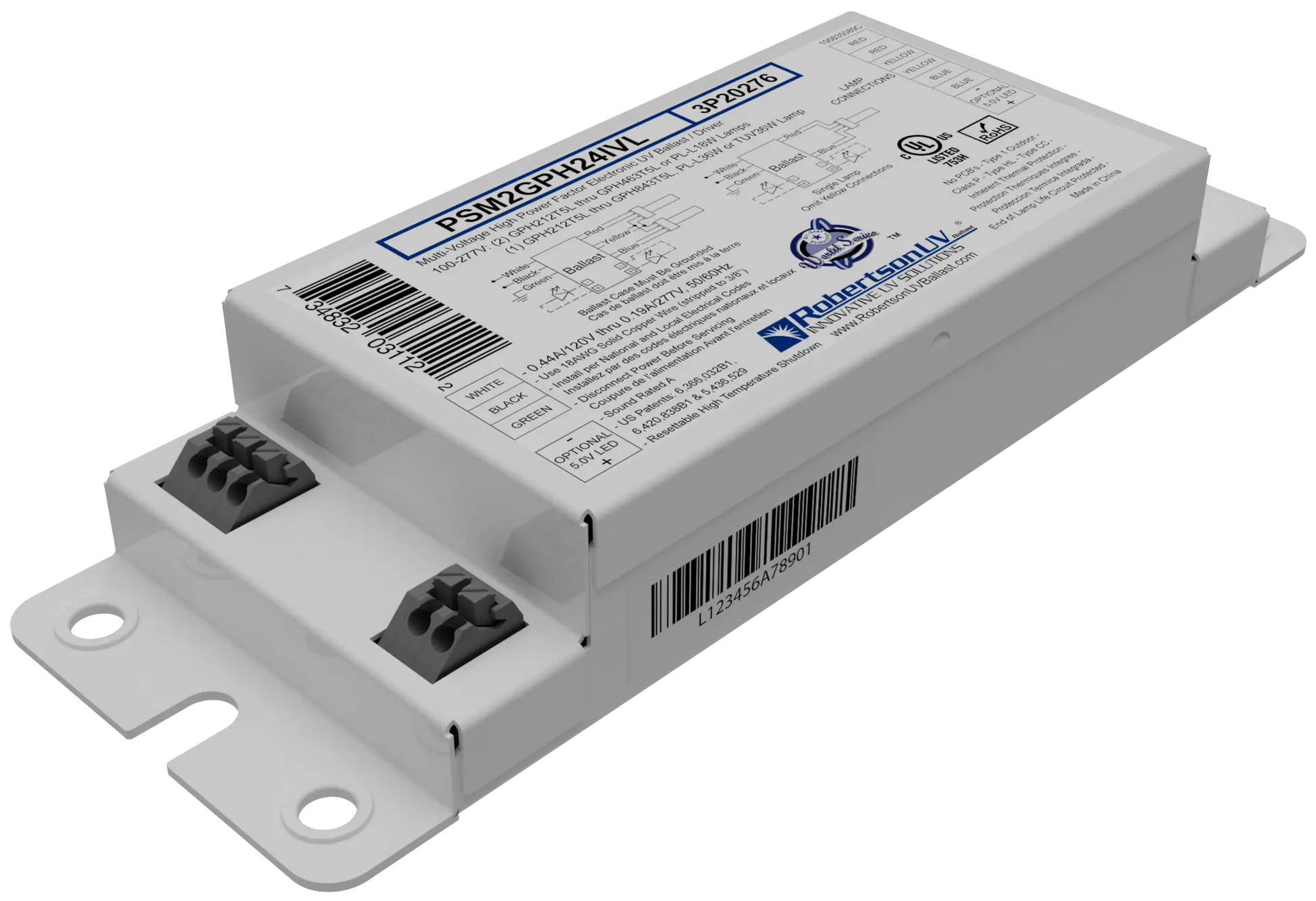

The Robertson PSM2GPH24IVL Electronic Program Start UV Ballast is a high-efficiency UV lamp ballast designed for
preheat start operation. Engineered for ultraviolet (UV) and germicidal lighting applications, it delivers an accurate nominal
lamp current of 425mA, supports an arc voltage range of 23V-115V, and operates on a universal input voltage of 100-
277V AC (50-60Hz).
This premium electronic ballast powers 1 or 2 10W-21W SO lamps or for 1 22W-38W SO lamp. Poke-in connectors (no
leads) for quick and hassle-free installation.

Key Features:
✔ Universal Voltage: 100-277V AC for global compatibility
✔ Program Start Technology: Provides extended lamp life, optimized startup sequence and superior energy efficiency
✔ 425mA Nominal Lamp Current: Delivers consistent and efficient UV output
✔ Series Lamp Connection: More consistent lamp performance and ideal for matched lamp sets
✔ End-of-Lamp-Life Protection: Robertson’s patented safety feature extends ballast life
✔ High-Performance Compatibility: Supports UV germicidal lamps used in high availability water purification, air
disinfection, TOC reduction and industrial sterilization applications
✔ Certified for Safety & Performance: cULus and CE listed for safe and reliable operation
✔Packaging: Each carton contains ten ballasts for better sku management

View full details

Lamp compatibility

  • 21054 Osram HNS L 18 W 2G11 - 18W; 380 mA; Preheat Start Lamp
  • 23354 Osram HNS 11W G5 - 11W; 410 mA; Preheat Start Lamp
  • 55030 Osram HNS 16W 4P SE - 16W; 400 mA; Preheat Start Lamp
  • 55031 Osram HNS 20W 4P SE - 20W; 450 mA; Preheat Start Lamp
  • Actinic BL TL-D 15W - 15W; 425 mA; Preheat Start Lamp
  • Blacklight BL368 Linear T12 - 20W; 370 mA; Preheat Start Lamp
  • G11T5/OF - 11W; 410 mA; Preheat Start Lamp
  • G16T5/OF - 16W; 430 mA; Preheat Start Lamp
  • G16T5L/4PSE - 16W; 400 mA; Preheat Start Lamp
  • G20T5L/4PSE - 20W; 450 mA; Preheat Start Lamp
  • G22T5L/4P - 22W; 425 mA; Preheat Start Lamp
  • GCL436T5L/Cell - 21W; 425 mA; Preheat Start Lamp
  • GCL436T5VH/Cell - 21W; 425 mA; Preheat Start Lamp
  • GFT18DL/2G11/SE/OF - 18W; 380 mA; Preheat Start Lamp
  • GPH150T5L/4P - 10W; 425 mA; Preheat Start Lamp
  • GPH212T5L - 10W; 425 mA; Preheat Start Lamp
  • GPH212T5L/4 - 10W; 425 mA; Preheat Start Lamp
  • GPH212T5VH - 10W; 425 mA; Preheat Start Lamp
  • GPH212T5VH/4 - 10W; 425 mA; Preheat Start Lamp
  • GPH287T5L - 14W; 425 mA; Preheat Start Lamp
  • GPH287T5L/4 - 14W; 425 mA; Preheat Start Lamp
  • GPH287T5VH - 14W; 425 mA; Preheat Start Lamp
  • GPH287T5VH/4 - 14W; 425 mA; Preheat Start Lamp
  • GPH295T5L - 14W; 425 mA; Preheat Start Lamp
  • GPH303T5L - 15W; 425 mA; Preheat Start Lamp
  • GPH303T5VH - 15W; 425 mA; Preheat Start Lamp
  • GPH305T5 - 15W; 425 mA; Preheat Start Lamp
  • GPH330T5L/4 - 16W; 425 mA; Preheat Start Lamp
  • GPH330T5VH/4 - 16W; 425 mA; Preheat Start Lamp
  • GPH357T5L - 17W; 425 mA; Preheat Start Lamp
  • GPH357T5L/4 - 17W; 425 mA; Preheat Start Lamp
  • GPH357T5VH - 17W; 425 mA; Preheat Start Lamp
  • GPH357T5VH/4 - 17W; 425 mA; Preheat Start Lamp
  • GPH383T5 - 18W; 425 mA; Preheat Start Lamp
  • GPH406T5L/4 - 18W; 425 mA; Preheat Start Lamp
  • GPH436T5L - 21W; 425 mA; Preheat Start Lamp
  • GPH436T5L/4 - 20W; 425 mA; Preheat Start Lamp
  • GPH436T5VH - 21W; 425 mA; Preheat Start Lamp
  • GPH436T5VH/4 - 20W; 425 mA; Preheat Start Lamp
  • GPH450T5L/4 - 21W; 425 mA; Preheat Start Lamp
  • GPH450T5VH/4 - 21W; 425 mA; Preheat Start Lamp
  • GPH457T5L/MDBP - 22W; 425 mA; Preheat Start Lamp
  • GPH463T5L - 23W; 425 mA; Preheat Start Lamp
  • GPH463T5L/4 - 22W; 425 mA; Preheat Start Lamp
  • GPH463T5VH/4 - 22W; 425 mA; Preheat Start Lamp
  • GPH508T5L/4P - 24W; 425 mA; Preheat Start Lamp
  • GPL18K - 18W; 375 mA; Preheat Start Lamp
  • HNS 11W G5 - 11W; 410 mA; Preheat Start Lamp
  • HNS 16W 4P SE - 16W; 400 mA; Preheat Start Lamp
  • HNS 16W G5 - 16W; 430 mA; Preheat Start Lamp
  • HNS 20W 4P SE - 20W; 450 mA; Preheat Start Lamp
  • HNS L 18 W 2G11 - 18W; 375 mA; Preheat Start Lamp
  • PLL18W/TUV - 18W; 375 mA; Preheat Start Lamp
  • TUV 11W FAM - 11W; 400 mA; Preheat Start Lamp
  • TUV 16W 4P-SE - 16W; 400 mA; Preheat Start Lamp
  • TUV 16W FAM - 16W; 400 mA; Preheat Start Lamp
  • TUV 16W G16T5 - 16W; 400 mA; Preheat Start Lamp
  • TUV 18W - 18W; 375 mA; Preheat Start Lamp
  • TUV 20W 4P SE - 20W; 450 mA; Preheat Start Lamp
  • TUV 20W FAM - 20W; 450 mA; Preheat Start Lamp
  • TUV PL-L 18W - 18W; 375 mA; Preheat Start Lamp
  • TUV PL-L 18W/4P - 18W; 375 mA; Preheat Start Lamp
  • 21080 Osram HNS 30W G13 - 30W; 360 mA; Preheat Start Lamp
  • 23392 Osram HNS L 36 W 2G11 - 36W; 440 mA; Preheat Start Lamp
  • 55032 Osram HNS 36W 4P SE - 36W; 430 mA; Preheat Start Lamp
  • 59985 Osram HNS 36W G13 - 36W; 440 mA; Preheat Start Lamp
  • Actinic BL TL 40W - 40W; 430 mA; Preheat Start Lamp
  • F36T8BL - 36W; 425 mA; Preheat Start Lamp
  • G30T8 - 30W; 370 mA; Preheat Start Lamp
  • G30T8/OF - 30W; 370 mA; Preheat Start Lamp
  • G36T5/4P/SE - 39W; 425 mA; Preheat Start Lamp
  • G36T5L/4PSE - 36W; 430 mA; Preheat Start Lamp
  • G36T8 - 36W; 430 mA; Preheat Start Lamp
  • G36T8/OF - 36W; 440 mA; Preheat Start Lamp
  • GBX36/UVC/2G11 - 36W; 440 mA; Preheat Start Lamp
  • GCL36T5L/Cell - 41W; 425 mA; Preheat Start Lamp
  • GCL36T5VH/Cell - 41W; 425 mA; Preheat Start Lamp
  • GCL793T5L/Cell - 38W; 425 mA; Preheat Start Lamp
  • GCL793T5VH/Cell - 38W; 425 mA; Preheat Start Lamp
  • GFT36DL/2G11/SE/OF - 36W; 440 mA; Preheat Start Lamp
  • GPH550T5L - 28W; 425 mA; Preheat Start Lamp
  • GPH550T5VH - 28W; 425 mA; Preheat Start Lamp
  • GPH620T5L/4 - 29W; 425 mA; Preheat Start Lamp
  • GPH620T5VH/4 - 29W; 425 mA; Preheat Start Lamp
  • GPH711T5L/4P - 34W; 425 mA; Preheat Start Lamp
  • GPH793T5L - 38W; 425 mA; Preheat Start Lamp
  • GPH793T5L/4 - 37W; 425 mA; Preheat Start Lamp
  • GPH793T5L/4P - 37W; 425 mA; Preheat Start Lamp
  • GPH793T5VH - 38W; 425 mA; Preheat Start Lamp
  • GPH793T5VH/4 - 37W; 425 mA; Preheat Start Lamp
  • GPH810T5L/4 - 38W; 425 mA; Preheat Start Lamp
  • GPH810T5VH/4 - 38W; 425 mA; Preheat Start Lamp
  • GPH843T5L - 41W; 425 mA; Preheat Start Lamp
  • GPH843T5VH - 41W; 425 mA; Preheat Start Lamp
  • GPH914T5L/4P - 44W; 425 mA; Preheat Start Lamp
  • GPL36K - 36W; 435 mA; Preheat Start Lamp
  • HNS 30W G13 - 30W; 360 mA; Preheat Start Lamp
  • HNS 36W 4P SE - 36W; 430 mA; Preheat Start Lamp
  • HNS 36W G13 - 36W; 440 mA; Preheat Start Lamp
  • HNS L 36 W 2G11 - 36W; 440 mA; Preheat Start Lamp
  • LTC40T5SE - 41W; 425 mA; Preheat Start Lamp
  • PLL36W/TUV - 36W; 435 mA; Preheat Start Lamp
  • S36RL - 40W; 420 mA; Preheat Start Lamp
  • TUV 30W - 30W; 360 mA; Preheat Start Lamp
  • TUV 36 4P-SE T5 - 40W; 425 mA; Preheat Start Lamp
  • TUV 36W - 36W; 435 mA; Preheat Start Lamp
  • TUV PL-L 36W/4P - 36W; 435 mA; Preheat Start Lamp
  • TUV PL-S 40W/4P - 40W; 465 mA; Preheat Start Lamp

Spec Sheet
