PAQ230G6MV

PAQ230G6MV

$67.55
$67.55

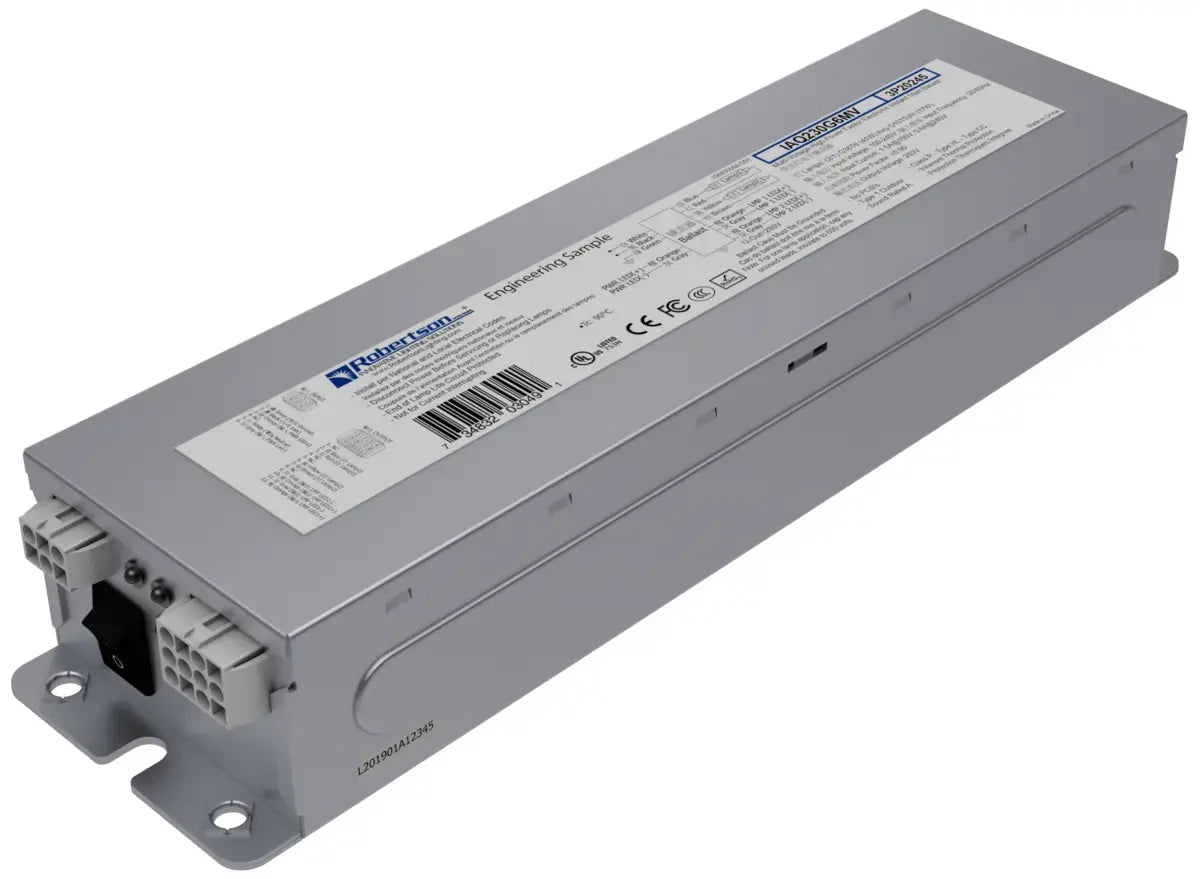

Robertson PAQ230G6MV Electronic Program Start UV Ballast (for Preheat Start SO UV Lamps), 425mA lamp current, 100-240Vac, for 1 or 2 17W-43W Lamp(s)

For quantities less than listed, please contact BallastShop.com to purchase this item.

Description

The Robertson PAQ230G6MV Electronic Program Start Ballast is a high-efficiency UV-C lamp ballast designed for program start operation. Engineered for ultraviolet (UV) and germicidal lighting applications, it delivers an accurate nominal lamp current of 425mA, supports an arc voltage range of 40V-100V, and operates on a universal input voltage of 100-240Vac (50-60Hz).
This premium electronic ballast powers 1 or 2 SO UV-C preheat start lamps operating between 16W to 43W. Wire harness connectors are included for quick and hassle-free installation.

Key Features:
✔ Universal Voltage: 100-240Vac for global compatibility
✔ Program Start Technology: Provides extended lamp life, optimized startup sequence and superior energy efficiency
✔ 425mA Nominal Lamp Current: Delivers consistent and efficient UV output
✔Parallel Lamp Connection: Better performance with mismatched lamps and independent lamp operation
✔ End-of-Lamp-Life Protection: Robertson’s patented safety feature extends ballast life
✔ High-Performance Compatibility: Supports UV germicidal lamps used in high availability water purification applications, air disinfection, TOC reduction and industrial sterilization
✔ Certified for Safety & Performance: cULus, CE, and CCC listed for safe and reliable operation
✔Packaging: Each carton contains six ballasts for better sku management

View full details

Lamp compatibility

  • 21054 Osram HNS L 18 W 2G11 - 18W; 380 mA; Preheat Start Lamp
  • 21080 Osram HNS 30W G13 - 30W; 360 mA; Preheat Start Lamp
  • 23392 Osram HNS L 36 W 2G11 - 36W; 440 mA; Preheat Start Lamp
  • 55031 Osram HNS 20W 4P SE - 20W; 450 mA; Preheat Start Lamp
  • 55032 Osram HNS 36W 4P SE - 36W; 430 mA; Preheat Start Lamp
  • 59985 Osram HNS 36W G13 - 36W; 440 mA; Preheat Start Lamp
  • Actinic BL TL 40W - 40W; 430 mA; Preheat Start Lamp
  • Blacklight BL368 Linear T12 - 20W; 370 mA; Preheat Start Lamp
  • F36T8BL - 36W; 425 mA; Preheat Start Lamp
  • G20T5L/4PSE - 20W; 450 mA; Preheat Start Lamp
  • G22T5L/4P - 22W; 425 mA; Preheat Start Lamp
  • G30T8 - 30W; 370 mA; Preheat Start Lamp
  • G30T8/OF - 30W; 370 mA; Preheat Start Lamp
  • G36T5/4P/SE - 39W; 425 mA; Preheat Start Lamp
  • G36T5L/4PSE - 36W; 430 mA; Preheat Start Lamp
  • G36T8 - 36W; 430 mA; Preheat Start Lamp
  • G36T8/OF - 36W; 440 mA; Preheat Start Lamp
  • GBX36/UVC/2G11 - 36W; 440 mA; Preheat Start Lamp
  • GCL36T5L/Cell - 41W; 425 mA; Preheat Start Lamp
  • GCL36T5VH/Cell - 41W; 425 mA; Preheat Start Lamp
  • GCL436T5L/Cell - 21W; 425 mA; Preheat Start Lamp
  • GCL436T5VH/Cell - 21W; 425 mA; Preheat Start Lamp
  • GCL793T5L/Cell - 38W; 425 mA; Preheat Start Lamp
  • GCL793T5VH/Cell - 38W; 425 mA; Preheat Start Lamp
  • GFT18DL/2G11/SE/OF - 18W; 380 mA; Preheat Start Lamp
  • GFT36DL/2G11/SE/OF - 36W; 440 mA; Preheat Start Lamp
  • GPH357T5L - 17W; 425 mA; Preheat Start Lamp
  • GPH357T5L/4 - 17W; 425 mA; Preheat Start Lamp
  • GPH357T5VH - 17W; 425 mA; Preheat Start Lamp
  • GPH357T5VH/4 - 17W; 425 mA; Preheat Start Lamp
  • GPH383T5 - 18W; 425 mA; Preheat Start Lamp
  • GPH406T5L/4 - 18W; 425 mA; Preheat Start Lamp
  • GPH436T5L - 21W; 425 mA; Preheat Start Lamp
  • GPH436T5L/4 - 20W; 425 mA; Preheat Start Lamp
  • GPH436T5VH - 21W; 425 mA; Preheat Start Lamp
  • GPH436T5VH/4 - 20W; 425 mA; Preheat Start Lamp
  • GPH450T5L/4 - 21W; 425 mA; Preheat Start Lamp
  • GPH450T5VH/4 - 21W; 425 mA; Preheat Start Lamp
  • GPH457T5L/MDBP - 22W; 425 mA; Preheat Start Lamp
  • GPH463T5L - 23W; 425 mA; Preheat Start Lamp
  • GPH463T5L/4 - 22W; 425 mA; Preheat Start Lamp
  • GPH463T5VH/4 - 22W; 425 mA; Preheat Start Lamp
  • GPH508T5L/4P - 24W; 425 mA; Preheat Start Lamp
  • GPH550T5L - 28W; 425 mA; Preheat Start Lamp
  • GPH550T5VH - 28W; 425 mA; Preheat Start Lamp
  • GPH620T5L/4 - 29W; 425 mA; Preheat Start Lamp
  • GPH620T5VH/4 - 29W; 425 mA; Preheat Start Lamp
  • GPH711T5L/4P - 34W; 425 mA; Preheat Start Lamp
  • GPH793T5L - 38W; 425 mA; Preheat Start Lamp
  • GPH793T5L/4 - 37W; 425 mA; Preheat Start Lamp
  • GPH793T5L/4P - 37W; 425 mA; Preheat Start Lamp
  • GPH793T5VH - 38W; 425 mA; Preheat Start Lamp
  • GPH793T5VH/4 - 37W; 425 mA; Preheat Start Lamp
  • GPH810T5L/4 - 38W; 425 mA; Preheat Start Lamp
  • GPH810T5VH/4 - 38W; 425 mA; Preheat Start Lamp
  • GPH843T5L - 41W; 425 mA; Preheat Start Lamp
  • GPH843T5VH - 41W; 425 mA; Preheat Start Lamp
  • GPL18K - 18W; 375 mA; Preheat Start Lamp
  • GPL36K - 36W; 435 mA; Preheat Start Lamp
  • HNS 20W 4P SE - 20W; 450 mA; Preheat Start Lamp
  • HNS 30W G13 - 30W; 360 mA; Preheat Start Lamp
  • HNS 36W 4P SE - 36W; 430 mA; Preheat Start Lamp
  • HNS 36W G13 - 36W; 440 mA; Preheat Start Lamp
  • HNS L 18 W 2G11 - 18W; 375 mA; Preheat Start Lamp
  • HNS L 36 W 2G11 - 36W; 440 mA; Preheat Start Lamp
  • LTC40T5SE - 41W; 425 mA; Preheat Start Lamp
  • PLL18W/TUV - 18W; 375 mA; Preheat Start Lamp
  • PLL36W/TUV - 36W; 435 mA; Preheat Start Lamp
  • S36RL - 40W; 420 mA; Preheat Start Lamp
  • TUV 18W - 18W; 375 mA; Preheat Start Lamp
  • TUV 20W 4P SE - 20W; 450 mA; Preheat Start Lamp
  • TUV 20W FAM - 20W; 450 mA; Preheat Start Lamp
  • TUV 30W - 30W; 360 mA; Preheat Start Lamp
  • TUV 36 4P-SE T5 - 40W; 425 mA; Preheat Start Lamp
  • TUV 36W - 36W; 435 mA; Preheat Start Lamp
  • TUV PL-L 18W - 18W; 375 mA; Preheat Start Lamp
  • TUV PL-L 18W/4P - 18W; 375 mA; Preheat Start Lamp
  • TUV PL-L 36W/4P - 36W; 435 mA; Preheat Start Lamp
  • TUV PL-S 40W/4P - 40W; 465 mA; Preheat Start Lamp
